Thermal Max 92 windows

Low-energy buildings have become more and more popular. Although costs of erection of a low-every house is higher than that of a building erected in a traditional technology, low energy and heating bills will make your investment return within several years. Therefore, it is worth investing in windows with better thermal parameters. Using these sections one need not to be afraid of large glazing designed on the southern side by architects. The thickest profile that measures over 9 cm and 3-pane glazing unit with its thickness of 48 mm is additionally equipped with a hot inter-pane frame as standard, thus ensuring additional heat.

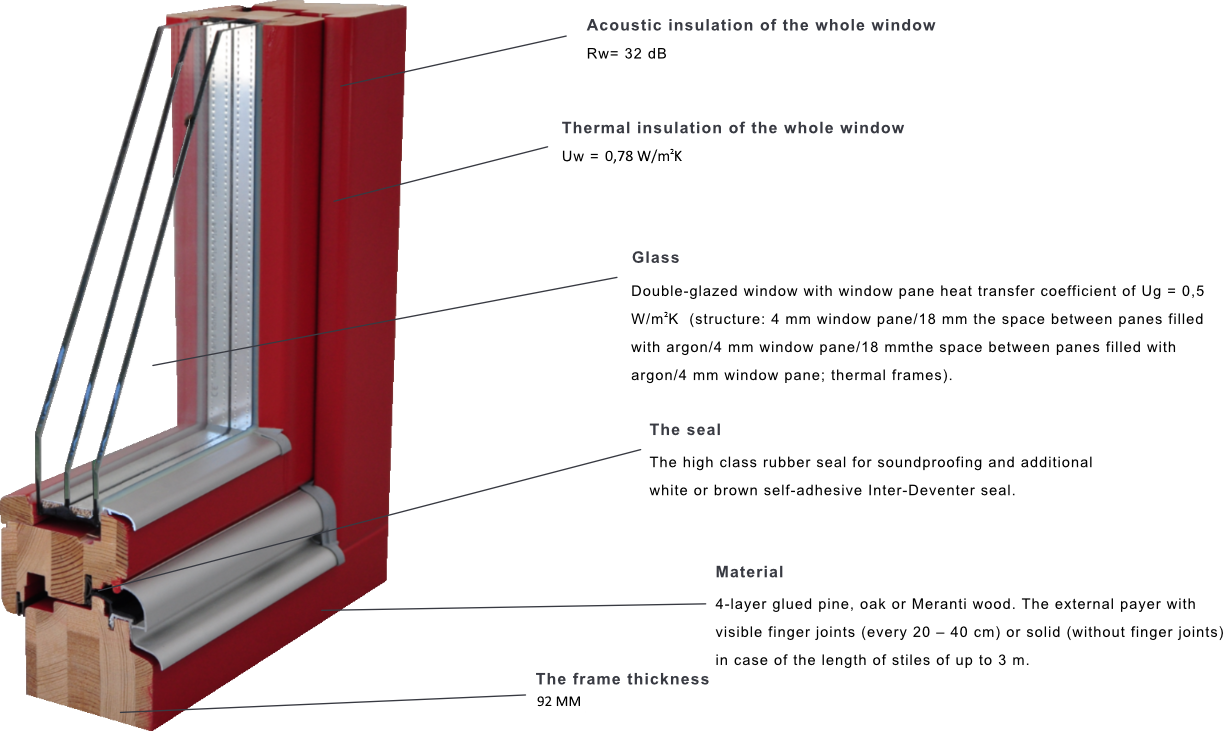

The structure

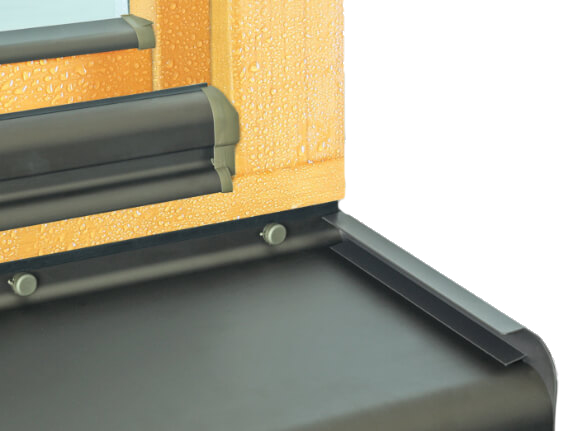

The drip

The aluminium drip on a frame and an additional drip on the wing in white (RAL 9016), silver (C0), brown (C34) or olive (C33). Optionally, drips may be use in any colours from RAL to match window colours.


on the wing


on the frame


4-layer water-based paint system including repellent, primer, intermediate layer and top layer. The rich range of colours with clear tree rings (scumbles) from Teknos Gori or opaque colours from RAL or NCS.


Hardware types

Siegenia multi-point lock fittings with trickle ventilation as standard.


Hoppe Tokyo white (RAL 9016), brown (RAL 8707), old gold (F4), titan (F9), silver (F1).


Tilt windows (U), turn windows (R), tilt-and-turn windows ( UR), lift-and-slide windows on a low threshold (HS), tilt-and-slide windows (PSK), rotating windows, sliding windows on a low threshold (FS).


Anti-burglary hardware, handle interlock, opening limited, HAU-TAU tilting mechanism enabling tilting of the upper wing from the floor level, a handle with a key or button.

Additional equipment

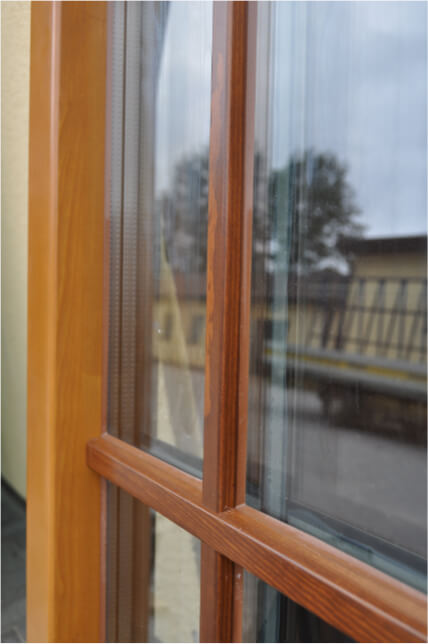

Glazing bargs

Glazing bars with the thickness of 8, 18, 26, 45 mm and in the following colours: wooden-like, golden, white, grey or in any RAL colour. Glazing bars put on a wing from outside in the form of a wooden frame that can be easily disassembled for cleaning. Glazing bars glued on the window pane from inside and outside (with an empty space between the panes) with the thickness of 20 to 30 mm. Vienna-style glazing bars composed of a glued bar and an aluminium frame or thermal frame mounted inside the panes (without an empty space between joints).


anti-burglary glass

ornamented glass

hardened glass

reflective glass

safe glass

venetian mirror

soundproof glass

anti-UV glass


Pressure, manual, hygro-controlled vents that regulate air flow automatically.

Thermal Max 92 window

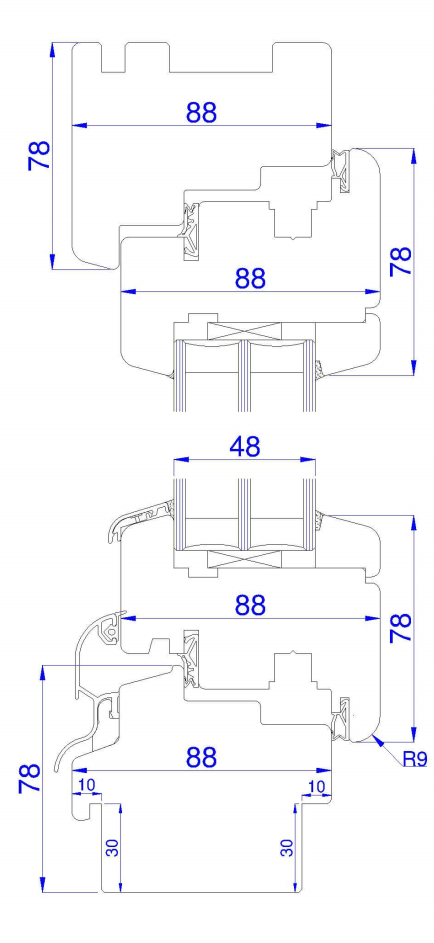

Technical drawing


Thermal Permeability Test
