Basic 68 windows

It is an offer for those looking for beautiful and good quality wooden windows at attractive prices. The integrated window pane facilitates cleaning. Owing to state-of-the-art technology used, the window wings do not have to be unscrewed for cleaning. The window has good thermal and acoustic parameters. The rich range of standard colours makes it possible to adjust appearance of the windows to interior design and building facades.

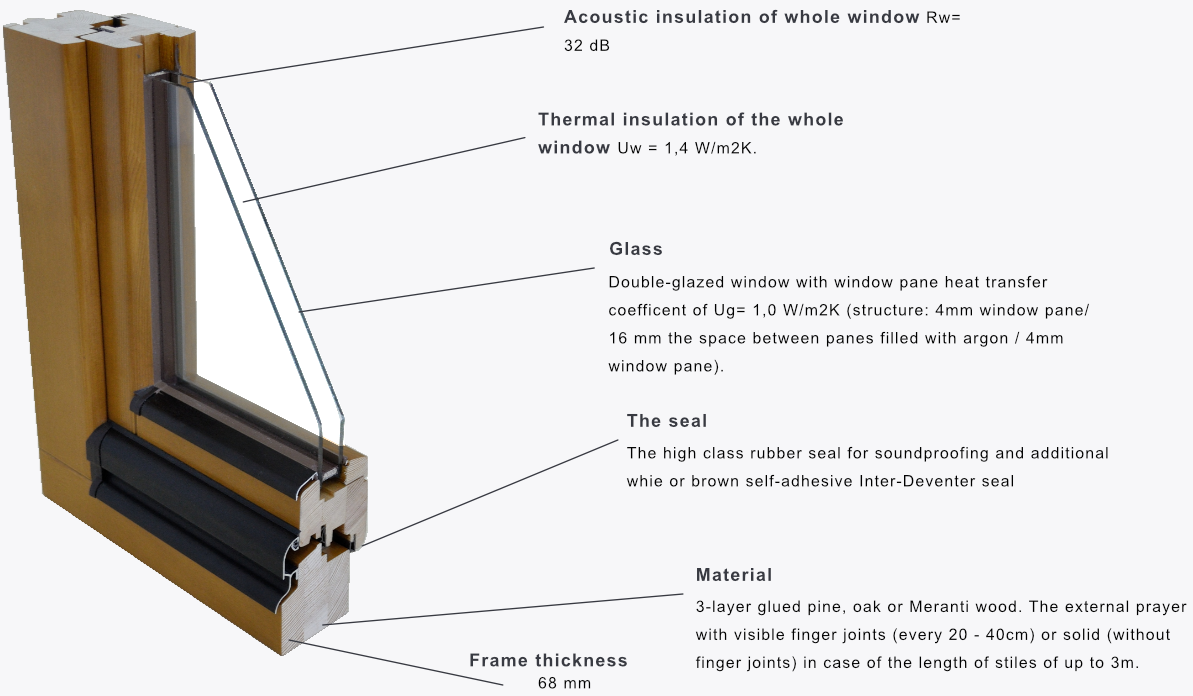

The structure

The drip

The aluminium drip on a frame and an additional drip on the wing in white (RAL 9016), silver (C0), brown (C34) or olive (C33). Optionally, drips may be use in any colours from RAL to match window colours.

Drip

on the wing

Drip

on the frame

Paint

4-layer water-based paint system including repellent, primer, intermediate layer and top layer. The rich range of colours with clear tree rings (scumbles) from Teknos Gori or opaque colours from RAL or NCS.

Hardware

Hardware types

Siegenia multi-point lock fittings with trickle ventilation as standard.

Handles

Hoppe Tokyo white (RAL 9016), brown (RAL 8707), old gold (F4), titan (F9), silver (F1).

Opening

Tilt windows (U), turn windows (R), tilt-and-turn windows (UR), lift-and-slide windows on a low threshold (HS), tilt-and-slide windows (PSK), rotating windows, sliding windows on a low threshold (FS).

Optional

Anti-burglary hardware, handle interlock, opening limited, HAU-TAU tilting mechanism enabling tilting of the upper wing from the floor level, a handle with a key or button.

Additional equipment

Glazing bars with the thickness of 8, 18, 26, 45 mm and in the following colours: wooden-like, golden, white, grey or in any RAL colour. Glazing bars put on a wing from outside in the form of a wooden frame that can be easily disassembled for cleaning. Glazing bars glued on the window pane from inside and outside (with an empty space between the panes) with the thickness of 20 to 30 mm. Vienna-style glazing bars composed of a glued bar and an aluminium frame or thermal frame mounted inside the panes (without an empty space between joints).

Glass

anti-burglary glass

ornamented glass

hardened glass

reflective glass

safe glass

venetian mirror

soundproof glass

anti-UV glass

Vents

Pressure, manual, hygro-controlled vents that regulate air flow automatically.

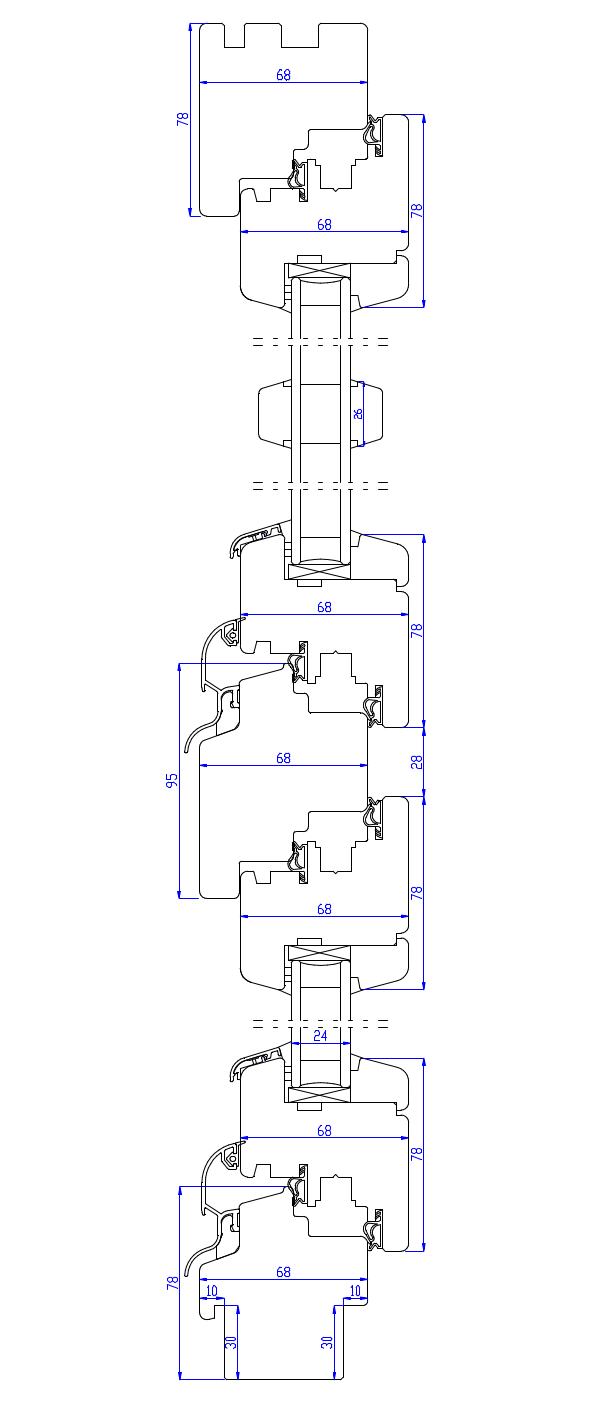

Basic 68 window – Technical drawing

Certificates

Declaration of

performance
